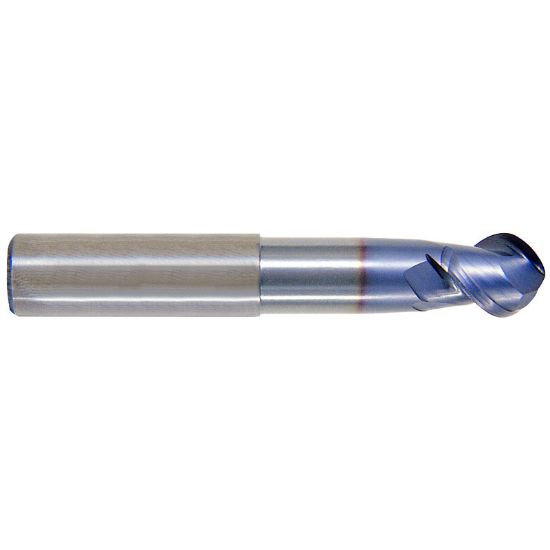

YG-1 37579TC DIA 5/16 SH 0.3125 LOC 0.2812 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-37579TC
Delivery date: 3-5 days
$27.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Single/Double End Single End
Length Type Stub / With Neck
Neck Length 1.1250 28.58MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Helix Angle 50°
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Length Of Cut 0.2813 7.15MM
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
