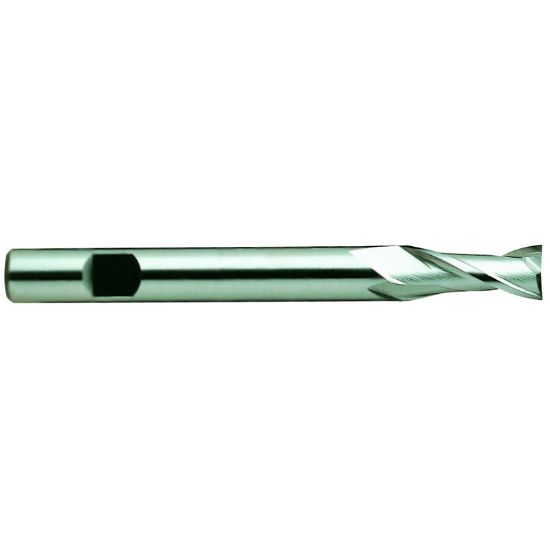

Picture of YG-1 3426 DIA 1 SH 1.00 LOC 2.50 OAL 7.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 3426 DIA 1 SH 1.00 LOC 2.50 OAL 7.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03426
Delivery date: 3-5 days
$77.55

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Length Type Extended
Helix Angle 30°
Overall Len 7.2500 184.15MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
