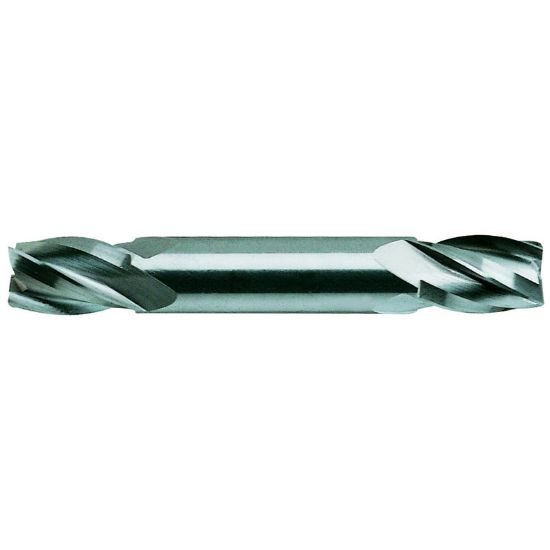

YG-1 33557 DIA 7/64 SH 0.1250 LOC 0.1875 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-33557
Delivery date: 3-5 days
$10.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating General Performance
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Length Of Cut 0.1875 4.76MM
Cutter Dia 0.1094 2.78MM - 7/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Helix Angle 30°
Single/Double End Double End
Overall Len 1.5000 38.10MM
End Of Tool Shape Square
Length Type Stub
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
