  • YG-1 3337 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

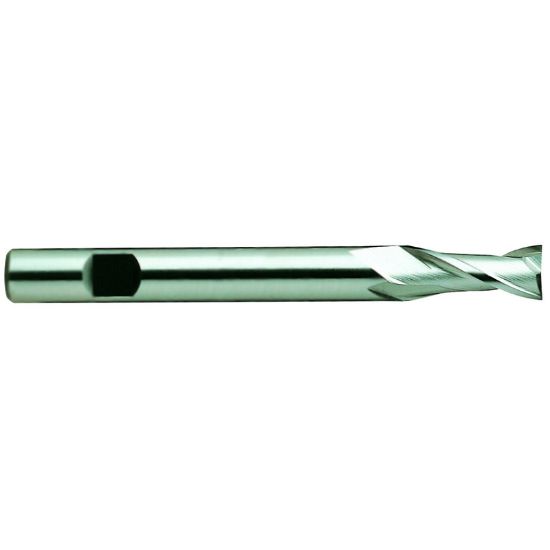

Picture of YG-1 3337 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 3337 DIA 5/8 SH 0.6250 LOC 1.3750 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03337
Delivery date: 3-5 days
$34.56

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.3750 34.93MM
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Length Type Extended
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.6250 117.48MM
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
End Of Tool Shape Square
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
