  • YG-1 3297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

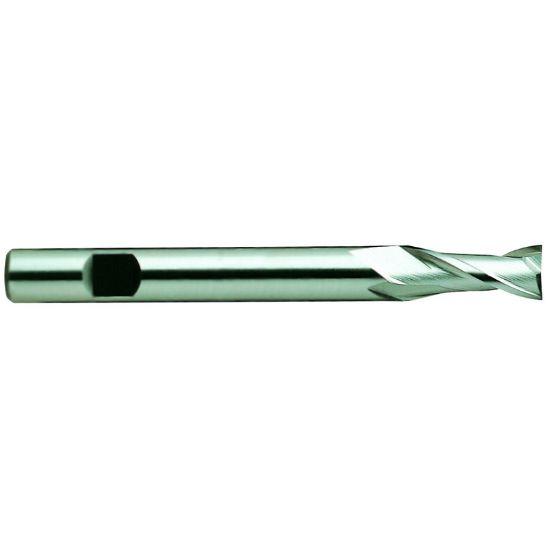

Picture of YG-1 3297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 3297 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03297
Delivery date: 3-5 days
$14.85

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Helix Angle 30°
Overall Len 3.0620 77.77MM
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Length Type Extended
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
