  • YG-1 3289 DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

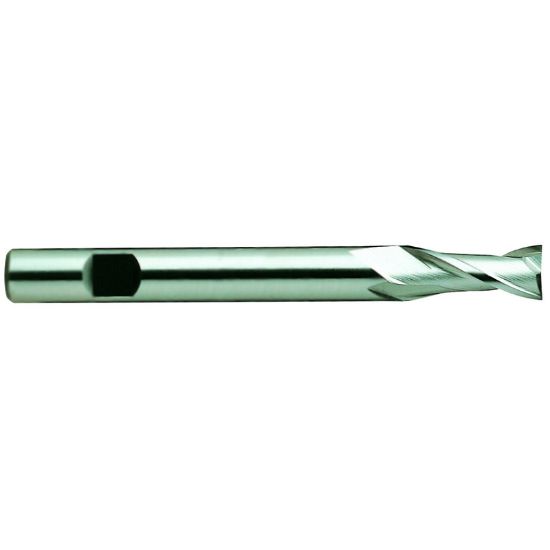

Picture of YG-1 3289 DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 3289 DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03289
Delivery date: 3-5 days
$14.85

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.3750 60.33MM
End Of Tool Shape Square
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Cutter Style Cobalt Finisher
Length Type Extended
Helix Angle 30°
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
