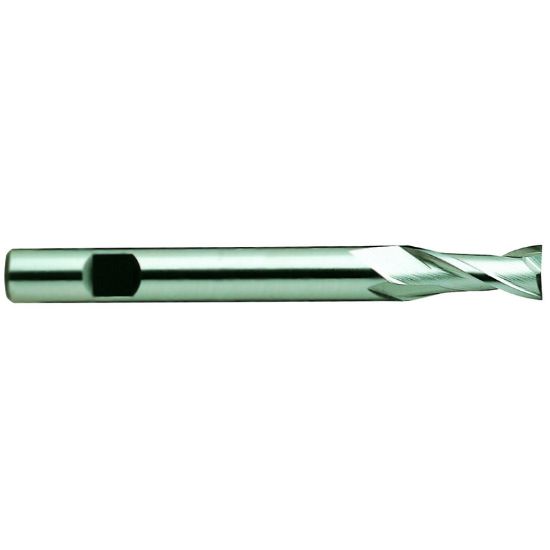

YG-1 3176 DIA 1 SH 1.00 LOC 2.50 OAL 7.2500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03176
Delivery date: 3-5 days
$60.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Length Type Extended
Inch/Metric Inch
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cutter Dia 1.0000 25.40MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Overall Len 7.2500 184.15MM
Flutes/Inserts 2
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
