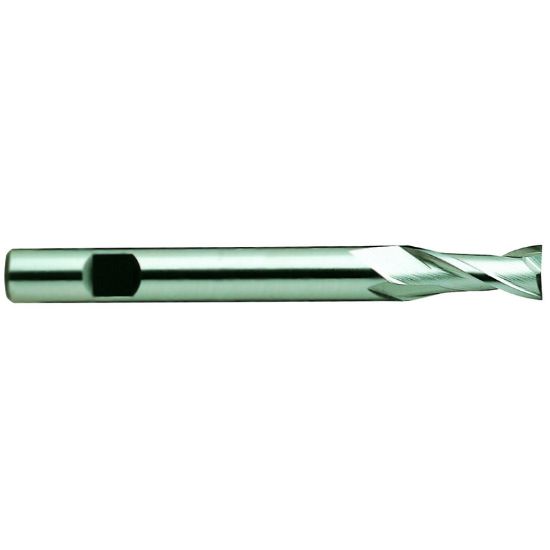

YG-1 3144 DIA 7/8 SH 0.8750 LOC 2.00 OAL 6.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03144
Delivery date: 3-5 days
$48.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutter Dia 0.8750 22.23MM - 7/8
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Overall Len 6.0000 152.40MM
Helix Angle 30°
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Size 0.8750 22.23MM
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Length Type Extended
Inch/Metric Inch
End Of Tool Shape Square
Cutter Style HSS Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
