  • YG-1 3071 DIA 1/2 SH 0.50 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

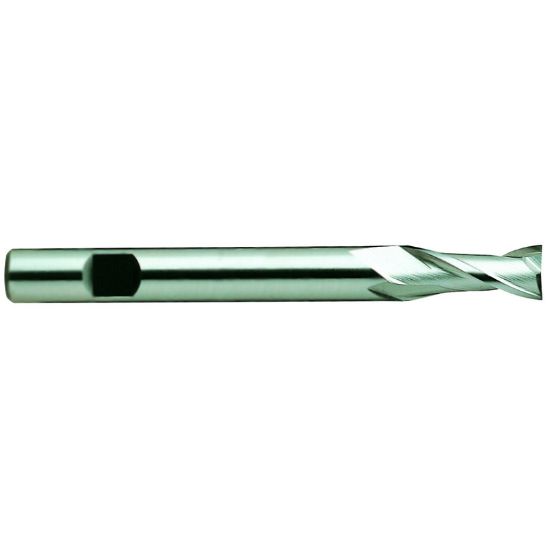

Picture of YG-1 3071 DIA 1/2 SH 0.50 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

YG-1 3071 DIA 1/2 SH 0.50 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03071
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
Cutter Style HSS Finisher
Single/Double End Single End
End Of Tool Shape Square
Flutes/Inserts 2
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Length Type Extended
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
