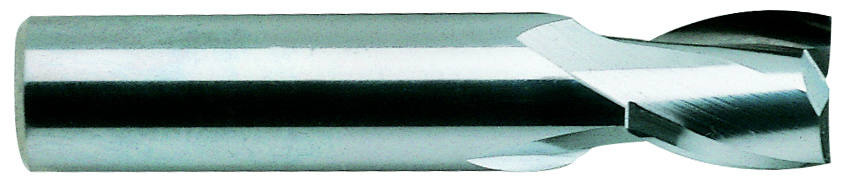

Picture of YG-1 30595TC Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp Carbide EndMillS

YG-1 30595TC Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp Carbide EndMillS

Part Number: YG-30595TC
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1213387
Vendor: Sussex Tool and Supply
$140.70

Description

YG-1 Standard Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 2 Single End CARBIDE ENDMILLS Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
