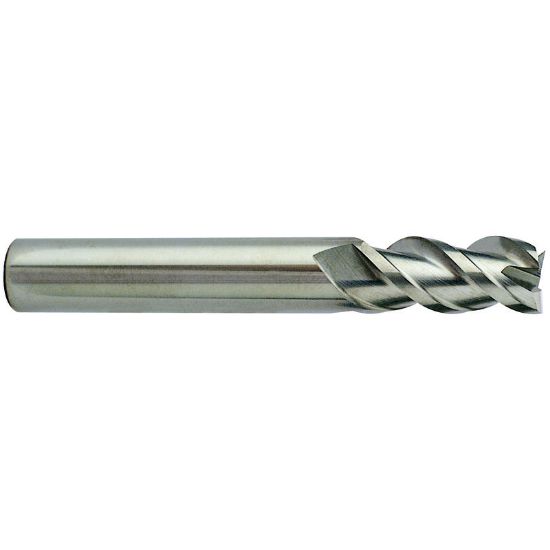

YG-1 28593-090 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-28593-090
Delivery date: 3-5 days
$60.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Made In USA No
Package Size 1
Dimensional Specifications
Corner Radius 0.0900 2.29MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 3.0000 76.20MM
Helix Angle 45°
Length Type Standard
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
