  • YG-1 2481L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

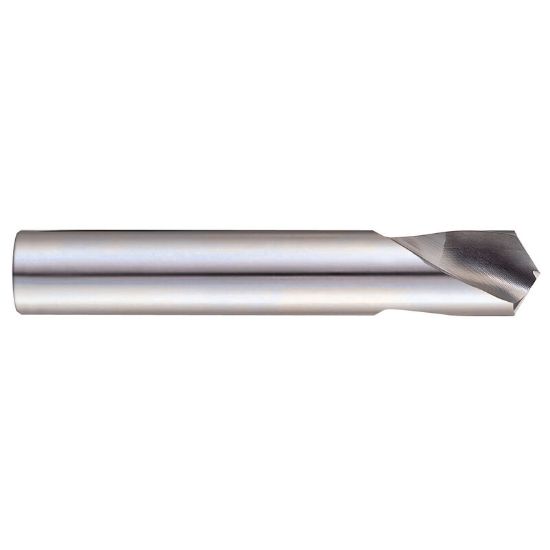

Picture of YG-1 2481L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

YG-1 2481L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG12481L
Delivery date: 3-5 days
$26.97

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling, Center Drilling, Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 5.1600 131.06MM
Drill Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flute Length 1.9680 49.99MM
Included Angle 60°
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cut Dia Min 0.7500 19.05MM - 3/4
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
