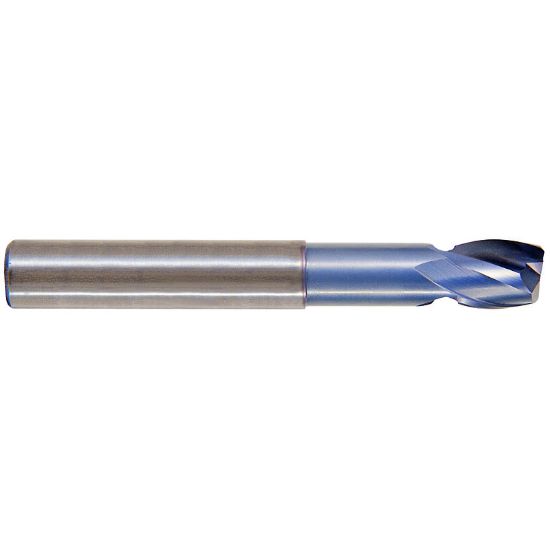

YG-1 24579 DIA 5/16 SH 0.3125 LOC 0.3750 OAL 2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-24579
Delivery date: 3-5 days
$37.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Flutes/Inserts 2
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.3750 9.53MM
Helix Angle 30°
Single/Double End Single End
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard / With Neck
Neck Length 1.1250 28.58MM
Cutter Dia 0.3125 7.94MM - 5/16
Overall Len 2.7500 69.85MM
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
