  • YG-1 2401L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

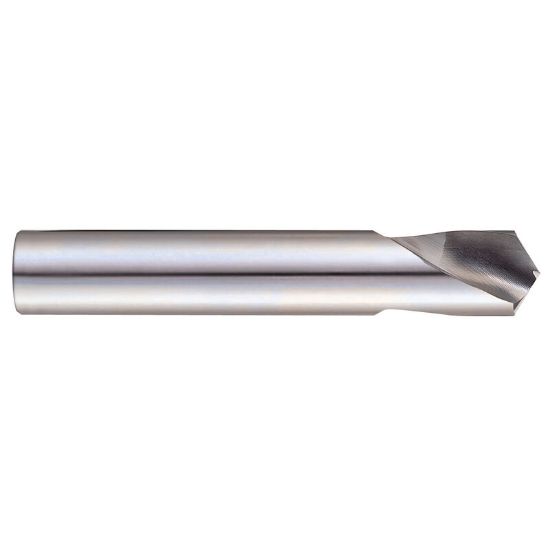

Picture of YG-1 2401L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

YG-1 2401L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG12401L
Delivery date: 3-5 days
$19.48

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Center Drilling, Drilling, Spot Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Drill Length Type Standard
Cut Dia Min 0.6250 15.88MM - 5/8
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Flute Length 1.5750 40.01MM
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.5300 115.06MM
Included Angle 60°
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
