  • YG-1 23281 DIA 1/4 SH 0.2500 LOC 0.6250 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

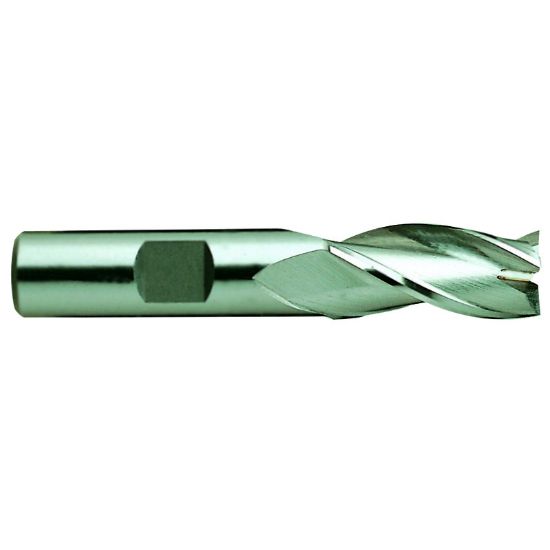

Picture of YG-1 23281 DIA 1/4 SH 0.2500 LOC 0.6250 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 23281 DIA 1/4 SH 0.2500 LOC 0.6250 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23281
Delivery date: 3-5 days
$8.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Length Of Cut 0.6250 15.88MM
Length Type Long
Flutes/Inserts 3
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Weldon
Overall Len 1.7500 44.45MM
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
