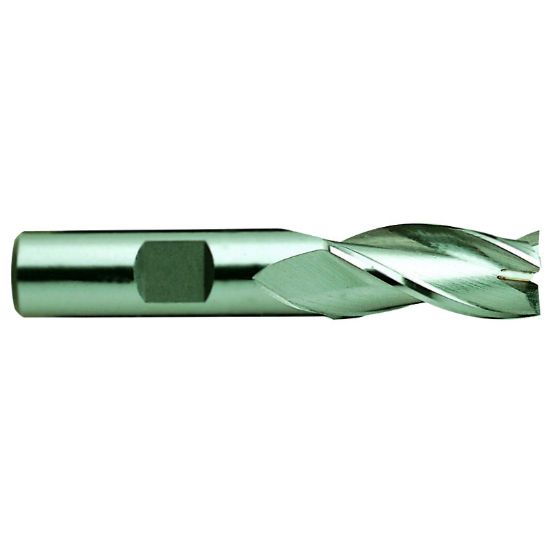

YG-1 23277CC DIA 7/32 SH 0.2500 LOC 0.50 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23277CC
Delivery date: 3-5 days
$13.49

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Coating TiCN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Cutter Dia 0.2188 5.56MM - 7/32
Length Type Long
Flutes/Inserts 3
End Of Tool Shape Square
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 1.7500 44.45MM
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
