  • YG-1 23277 DIA 7/32 SH 0.2500 LOC 0.50 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

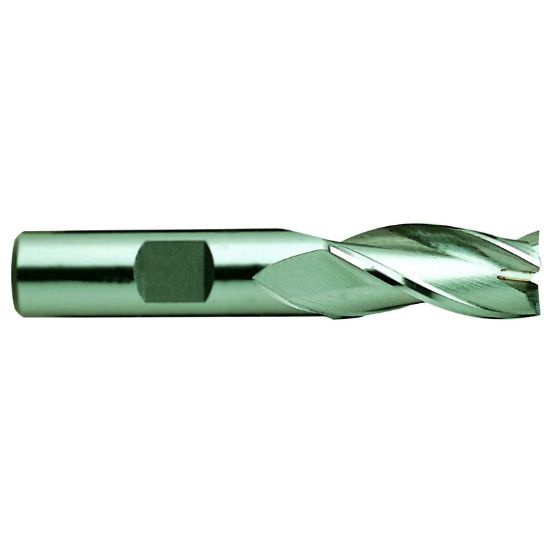

Picture of YG-1 23277 DIA 7/32 SH 0.2500 LOC 0.50 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 23277 DIA 7/32 SH 0.2500 LOC 0.50 OAL 1.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23277
Delivery date: 3-5 days
$8.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.2188 5.56MM - 7/32
Length Type Long
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Type Weldon
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Overall Len 1.7500 44.45MM
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
