  • YG-1 23269 DIA 5/32 SH 0.2500 LOC 0.3750 OAL 1.5310 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

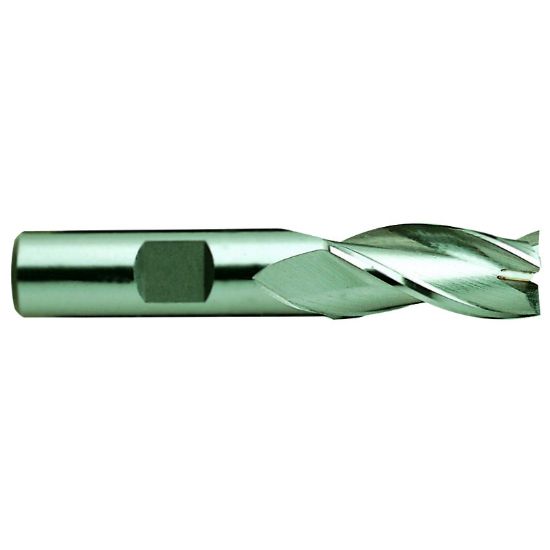

Picture of YG-1 23269 DIA 5/32 SH 0.2500 LOC 0.3750 OAL 1.5310 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 23269 DIA 5/32 SH 0.2500 LOC 0.3750 OAL 1.5310 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23269
Delivery date: 3-5 days
$8.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Side Milling, Face Milling
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Overall Len 1.5310 38.89MM
Helix Angle 30°
Flutes/Inserts 3
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Tool Material Cobalt
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Cutter Dia 0.1563 3.97MM - 5/32
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
