  • YG-1 23265 DIA 1/8 SH 0.2500 LOC 0.3125 OAL 1.3430 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

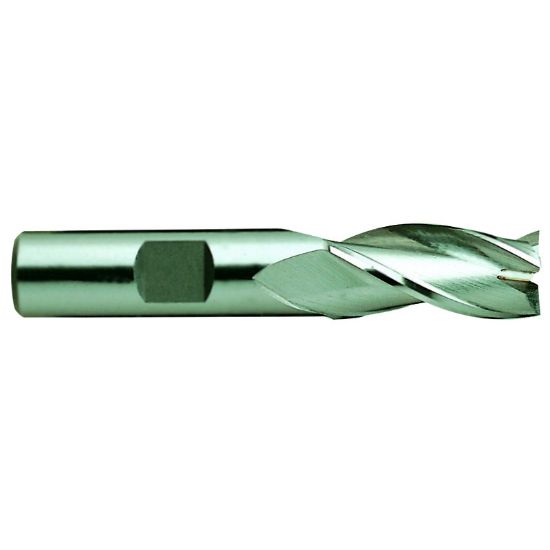

Picture of YG-1 23265 DIA 1/8 SH 0.2500 LOC 0.3125 OAL 1.3430 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 23265 DIA 1/8 SH 0.2500 LOC 0.3125 OAL 1.3430 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23265
Delivery date: 3-5 days
$8.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Face Milling
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Square
Overall Len 1.3430 34.11MM
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.3125 7.94MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
