  • YG-1 23257CN DIA 1/16 SH 0.2500 LOC 0.1563 OAL 1.0930 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

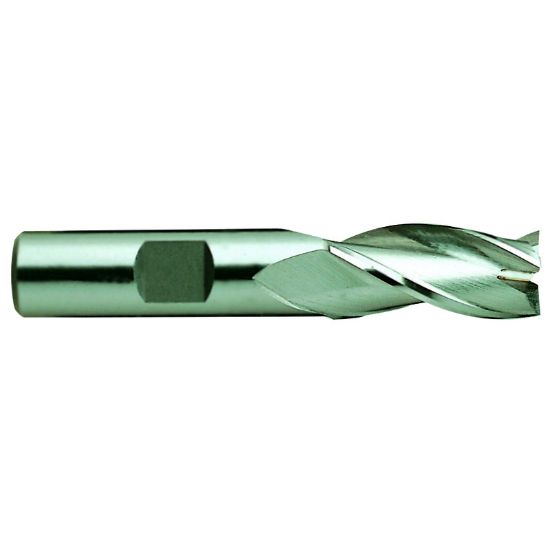

Picture of YG-1 23257CN DIA 1/16 SH 0.2500 LOC 0.1563 OAL 1.0930 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 23257CN DIA 1/16 SH 0.2500 LOC 0.1563 OAL 1.0930 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-23257CN
Delivery date: 3-5 days
$12.45

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Shipping State Illinois
Performance Rating General Performance
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 0.0625 1.59MM - 1/16
Length Type Long
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.1563 3.97MM
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 30°
Machine Side Connection Type Weldon
Machine Side Connection Size 0.2500 6.35MM
Overall Len 1.0930 27.76MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
