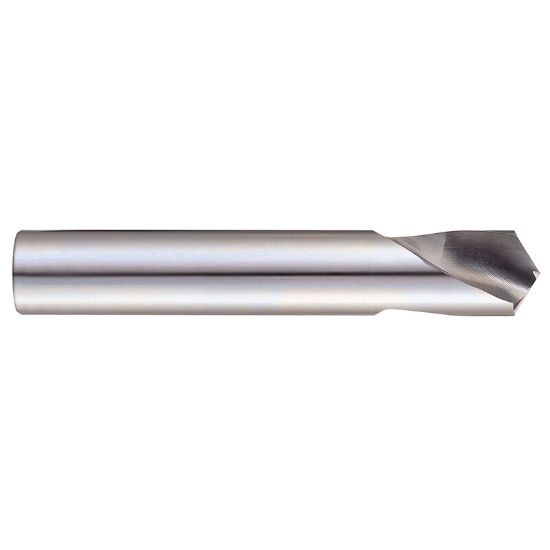

Picture of YG-1 2321L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

YG-1 2321L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG12321L
Delivery date: 3-5 days
$12.16

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Center Drilling, Drilling, Spot Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cutter Dia 0.5000 12.70MM - 1/2
Included Angle 60°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Cylindrical
Drill Length Type Standard
Overall Len 4.0200 102.11MM
Cut Dia Min 0.5000 12.70MM - 1/2
Flute Length 0.9840 24.99MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
