  • YG-1 22277 DIA 7/32 SH 0.2500 LOC 0.3125 OAL 1.4060 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

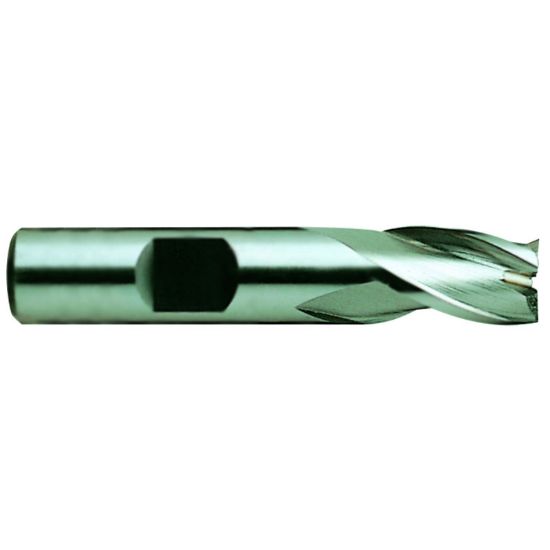

Picture of YG-1 22277 DIA 7/32 SH 0.2500 LOC 0.3125 OAL 1.4060 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 22277 DIA 7/32 SH 0.2500 LOC 0.3125 OAL 1.4060 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22277
Delivery date: 3-5 days
$7.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.2188 5.56MM - 7/32
Length Type Stub
Helix Angle 30°
Machine Side Connection Type Weldon
Inch/Metric Inch
Flutes/Inserts 3
Overall Len 1.4060 35.71MM
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Square
Cutter Style Cobalt Throw Away Finishers
Tool Material Cobalt
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
