  • YG-1 22269 DIA 5/32 SH 0.2500 LOC 0.2500 OAL 1.2810 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

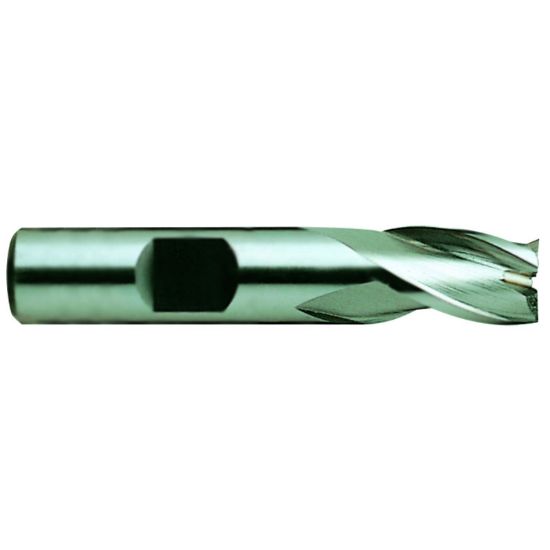

Picture of YG-1 22269 DIA 5/32 SH 0.2500 LOC 0.2500 OAL 1.2810 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 22269 DIA 5/32 SH 0.2500 LOC 0.2500 OAL 1.2810 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-22269
Delivery date: 3-5 days
$7.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating General Performance
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Stub
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Cobalt Throw Away Finishers
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 0.1563 3.97MM - 5/32
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Overall Len 1.2810 32.54MM
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
