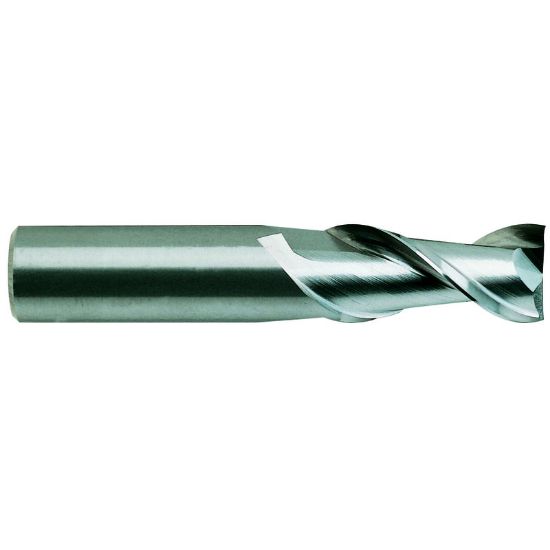

YG-1 21595TH DIA 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Hardslick Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-21595TH
Delivery date: 3-5 days
$130.45

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Coating Hardslick
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Helix Angle 42°
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
