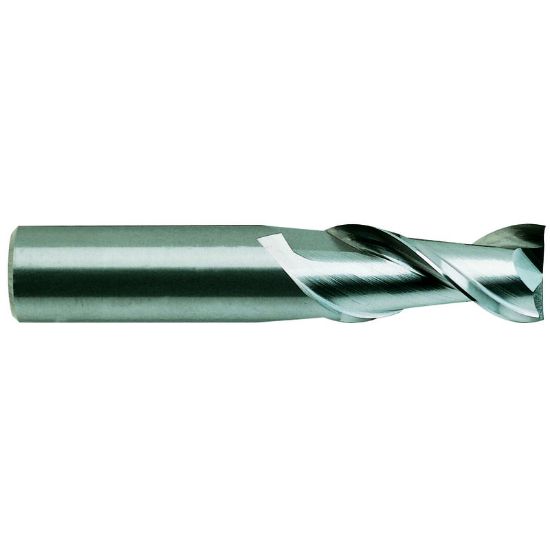

YG-1 21566 DIA 3/16 SH 0.2500 LOC 0.4375 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-21566
Delivery date: 3-5 days
$19.44

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1875 4.76MM - 3/16
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.4375 11.11MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Overall Len 2.0000 50.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 42°
Inch/Metric Inch
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
