  • YG-1 2081L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

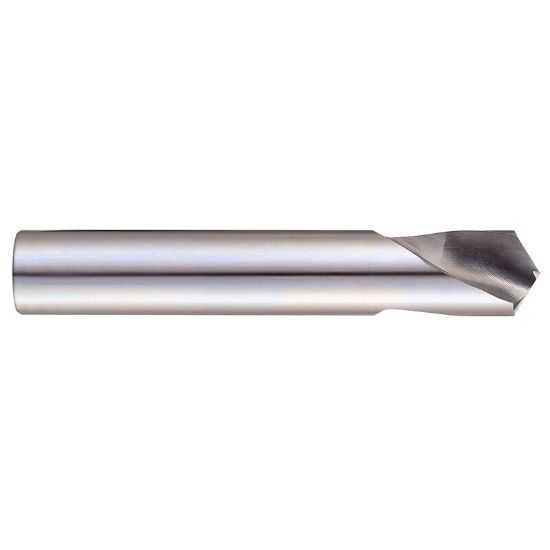

Picture of YG-1 2081L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

YG-1 2081L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 60°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG12081L
Delivery date: 3-5 days
$4.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling, Center Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Drill Length Type Standard
Cut Dia Min 0.1250 3.18MM - 1/8
Tool Material Cobalt
Overall Len 1.9300 49.02MM
Flute Length 0.4720 11.99MM
Flutes/Inserts 2
Cutter Dia 0.1250 3.18MM - 1/8
Included Angle 60°
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
