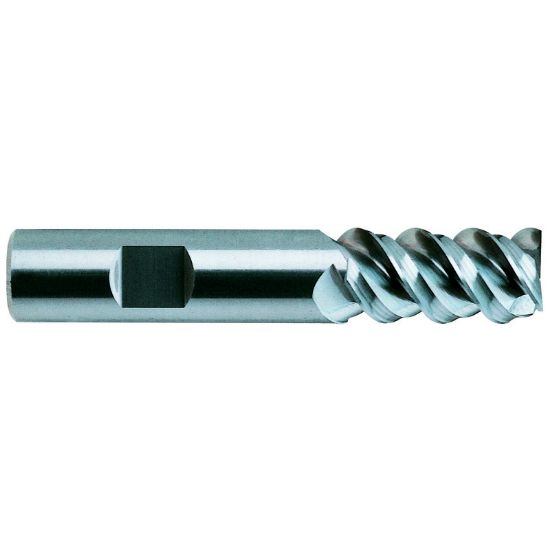

YG-1 20594 DIA 9/16 SH 0.5625 LOC 1.2500 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20594
Delivery date: 3-5 days
$73.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Face Milling
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5625 14.29MM
Length Of Cut 1.2500 31.75MM
Cutter Dia 0.5625 14.29MM - 9/16
Tool Material Carbide
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 60°
Machine Side Connection Type Weldon
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
