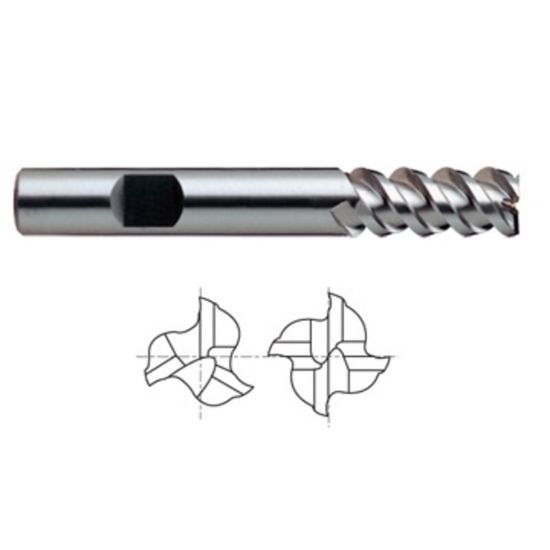

YG-1 20530 DIA 7/8 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20530
Delivery date: 3-5 days
$99.60

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.8750 22.23MM - 7/8
Tool Material Powder Metal
Flutes/Inserts 4
Inch/Metric Inch
Length Of Cut 1.8750 47.63MM
Length Type Standard
Overall Len 4.1250 104.78MM
Single/Double End Single End
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Helix Angle 60°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
