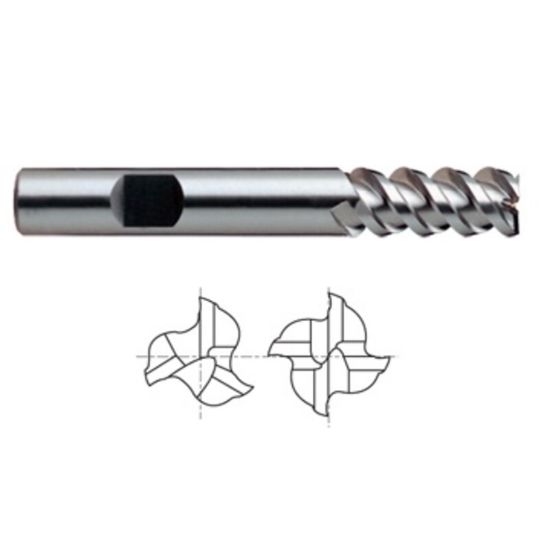

Picture of YG-1 20529 Dia 7/8 SH 0.7500 LOC 1.8750 OAL4.1250 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

YG-1 20529 Dia 7/8 SH 0.7500 LOC 1.8750 OAL4.1250 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

Part Number: YG-20529

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1213128
Vendor: Sussex Tool and Supply
$101.98
YG-1 High Helix End Mill Powder Metal Uncoated Square Sharp Standard Flute Flutes 4 Single End ASP Powder Metal
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.1250 104.78MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.8750 22.23MM - 7/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.8750 47.63MM
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 60
Center Cutting Center Cutting
