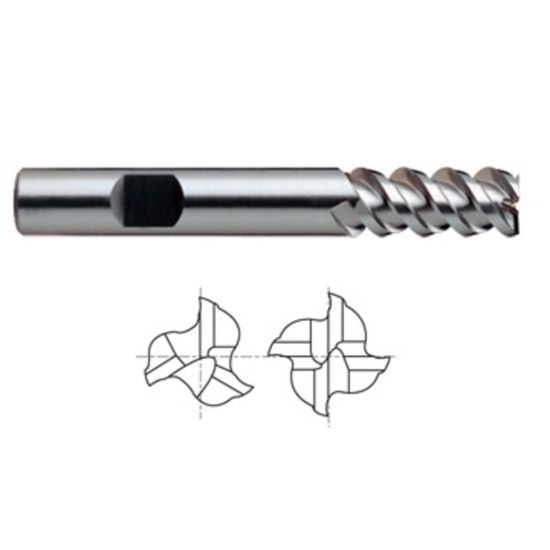

YG-1 20524 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20524
Delivery date: 3-5 days
$77.92

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Helix Angle 60°
Length Of Cut 1.6250 41.28MM
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Powder Metal
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.8750 98.43MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
