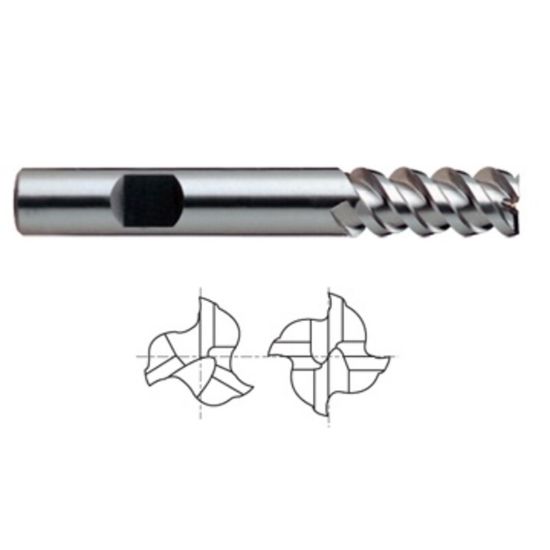

YG-1 20513 DIA 7/16 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute High Helix Powder Metal Uncoated Single End Square Sharp ASP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20513
Delivery date: 3-5 days
$36.61

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Powder Metal Finisher
Helix Angle 60°
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Tool Material Powder Metal
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.6870 68.25MM
Length Type Standard
Cutter Dia 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
