  • YG-1 20461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

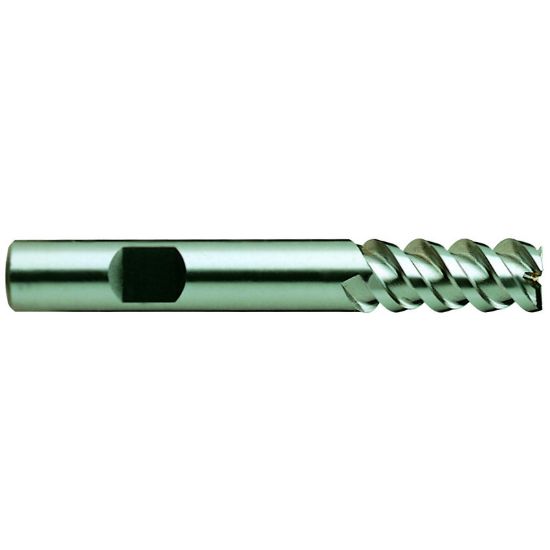

Picture of YG-1 20461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 20461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20461
Delivery date: 3-5 days
$154.67

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Cutter Style Cobalt Finisher
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Cutter Dia 1.5000 38.10MM - 1-1/2
Inch/Metric Inch
Helix Angle 60°
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
