  • YG-1 20359 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

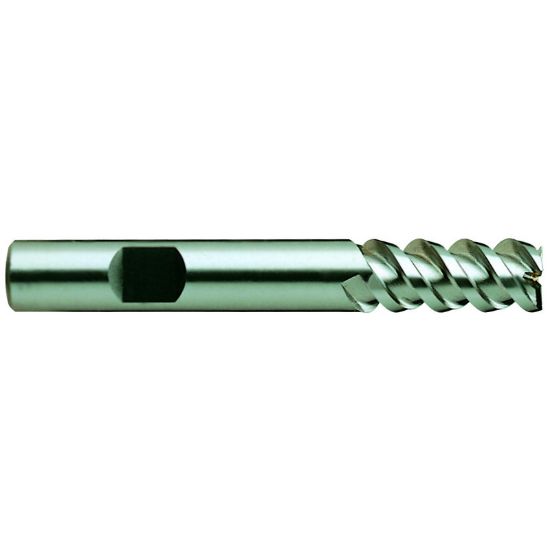

Picture of YG-1 20359 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 20359 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20359
Delivery date: 3-5 days
$51.72

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Slot Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Overall Len 3.8750 98.43MM
Length Type Standard
Length Of Cut 1.6250 41.28MM
Flutes/Inserts 3
End Of Tool Shape Square
Helix Angle 60°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
