  • YG-1 20312 DIA 7/16 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

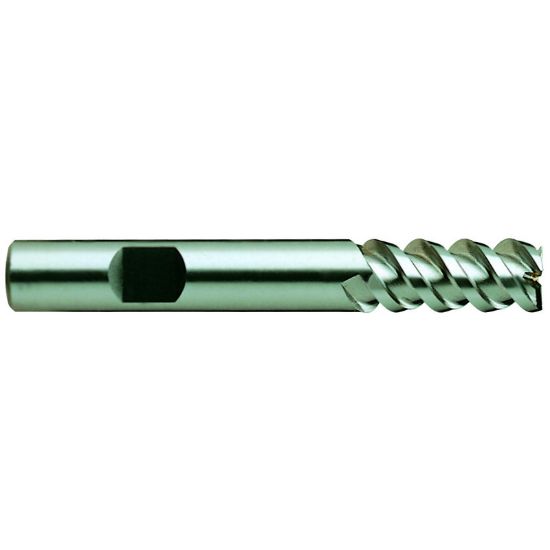

Picture of YG-1 20312 DIA 7/16 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 20312 DIA 7/16 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute High Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-20312
Delivery date: 3-5 days
$24.19

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Flutes/Inserts 3
Cutter Dia 0.4375 11.11MM - 7/16
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Helix Angle 60°
Overall Len 2.6870 68.25MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
