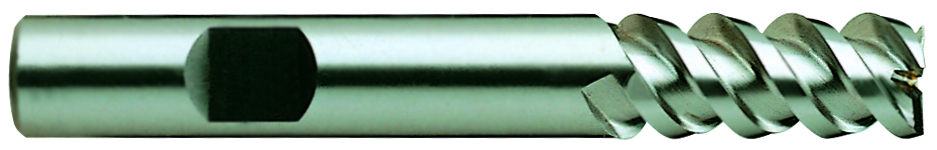

Picture of YG-1 20301CN Dia 5/16 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute High Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 20301CN Dia 5/16 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute High Helix Cobalt TiN Single End Square Sharp General Purpose

Part Number: YG-20301CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1202111
Vendor: Sussex Tool and Supply
$30.00
YG-1 High Helix End Mill Cobalt TiN Square Sharp Standard Flute Flutes 3 Single End GENERAL Purpose Cobalt Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Square
Cutter Style Cobalt Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 60
Center Cutting Non Center Cutting
