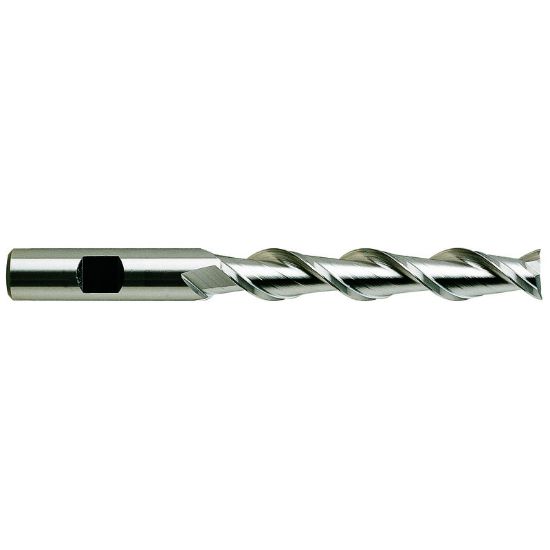

YG-1 19109 DIA 3/4 SH 0.7500 LOC 4.00 OAL 6.2500 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-19109
Delivery date: 3-5 days
$57.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Style HSS Finisher
Single/Double End Single End
Overall Len 6.2500 158.75MM
Length Of Cut 4.0000 101.60MM
Length Type Extra Long
Helix Angle 42°
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
