  • YG-1 19071 DIA 1/2 SH 0.50 LOC 3.00 OAL 5.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

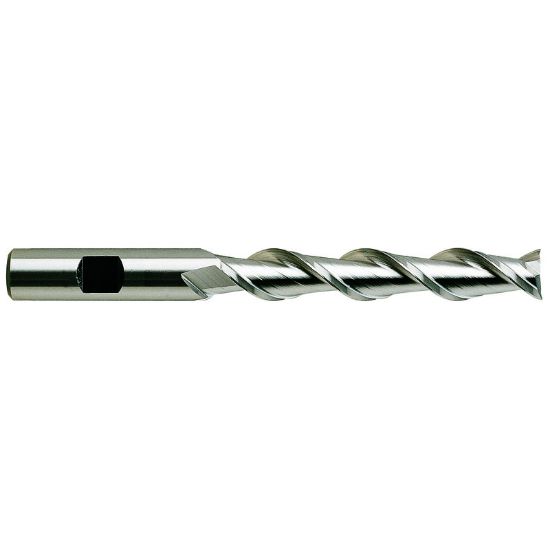

Picture of YG-1 19071 DIA 1/2 SH 0.50 LOC 3.00 OAL 5.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

YG-1 19071 DIA 1/2 SH 0.50 LOC 3.00 OAL 5.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-19071
Delivery date: 3-5 days
$25.15

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Length Type Extra Long
Flutes/Inserts 2
Length Of Cut 3.0000 76.20MM
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Cutter Style HSS Finisher
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Square
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Helix Angle 42°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
