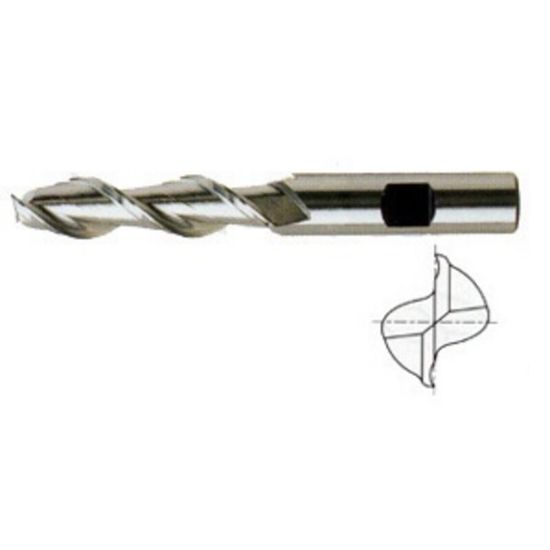

YG-1 18195HN DIA 1-1/4 SH 1.2500 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-18195HN
Delivery date: 3-5 days
$138.15

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Length Of Cut 4.0000 101.60MM
Tool Material High Speed Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Style HSS Finisher
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 42°
Flutes/Inserts 2
Length Type Long
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
