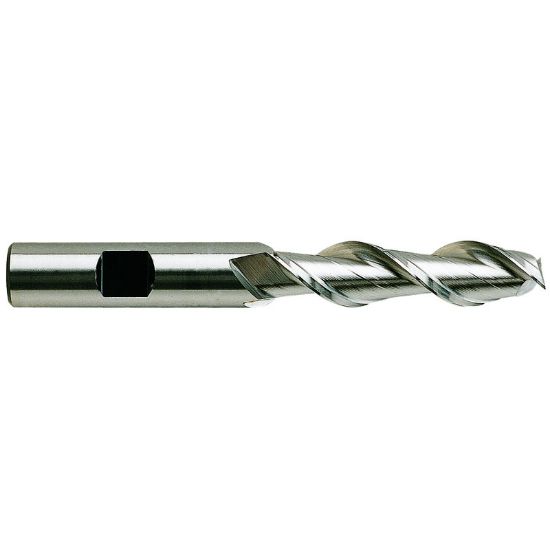

YG-1 18087HN DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-18087HN
Delivery date: 3-5 days
$51.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.6250 117.48MM
Cutter Style HSS Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Tool Material High Speed Steel
Flutes/Inserts 2
Length Type Long
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Helix Angle 42°
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
