  • YG-1 18071 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

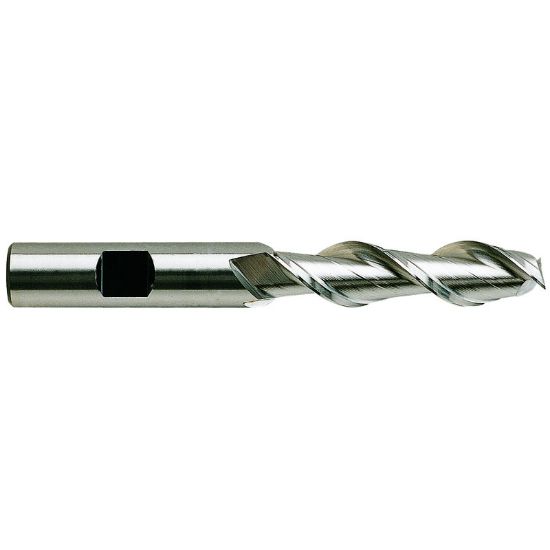

Picture of YG-1 18071 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

YG-1 18071 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-18071
Delivery date: 3-5 days
$21.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Application Face Milling, Side Milling
Made In USA No
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Length Type Long
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Machine Side Connection Size 0.5000 12.70MM
Cutter Style HSS Finisher
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 42°
Inch/Metric Inch
Overall Len 4.0000 101.60MM
Tool Material High Speed Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
