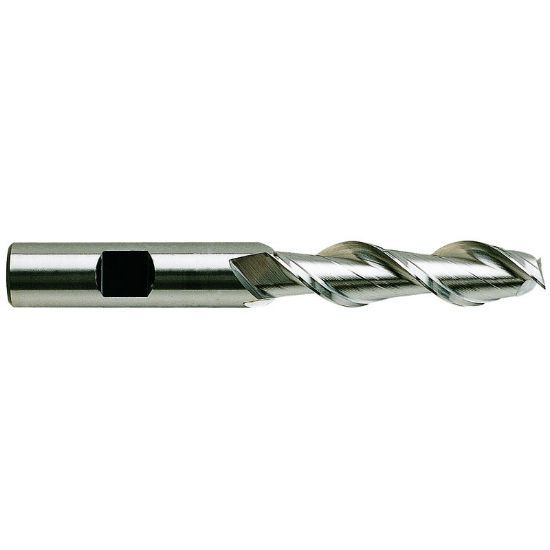

YG-1 18047HN DIA 1/4 SH 0.3750 LOC 1.2500 OAL 3.0620 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-18047HN
Delivery date: 3-5 days
$24.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Coating TiN
Shipping State Illinois
Dimensional Specifications
Helix Angle 42°
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style HSS Finisher
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material High Speed Steel
Flutes/Inserts 2
Length Type Long
Length Of Cut 1.2500 31.75MM
Machine Side Connection Size 0.3750 9.53MM
Overall Len 3.0620 77.77MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
