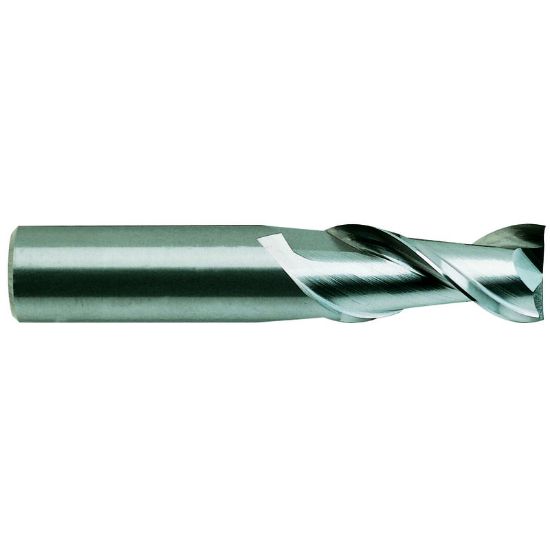

YG-1 17901TN DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp Carbide End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17901TN
Delivery date: 3-5 days
$74.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Length Of Cut 1.2500 31.75MM
Single/Double End Single End
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutter Style Carbide Finisher
Tool Material Carbide
Machine Side Connection Type Weldon
Helix Angle 42°
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
