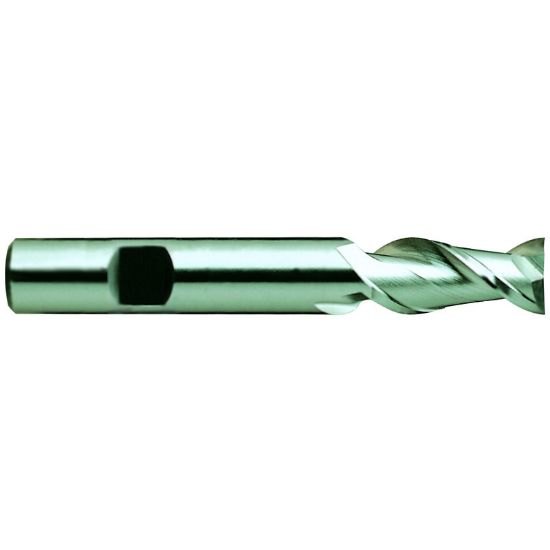

YG-1 17176 DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17176
Delivery date: 3-5 days
$51.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Tool Material High Speed Steel
Length Type Standard
Cutter Style HSS Finisher
Single/Double End Single End
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 42°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
