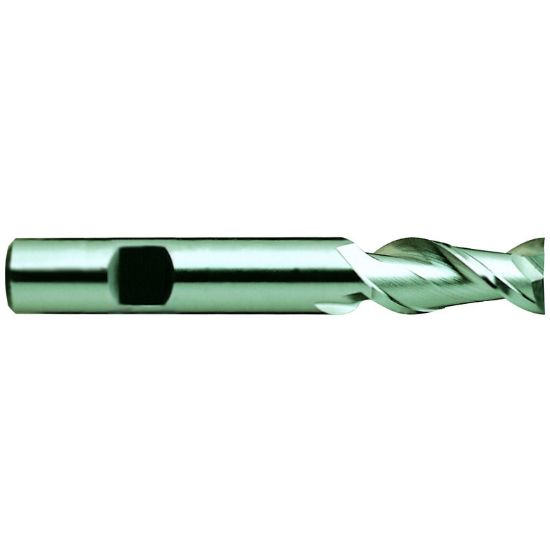

YG-1 17144HN DIA 7/8 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17144HN
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Overall Len 4.1250 104.78MM
Tool Material High Speed Steel
Flutes/Inserts 2
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutter Dia 0.8750 22.23MM - 7/8
End Of Tool Shape Square
Helix Angle 42°
Machine Side Connection Size 0.8750 22.23MM
Cutter Style HSS Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
