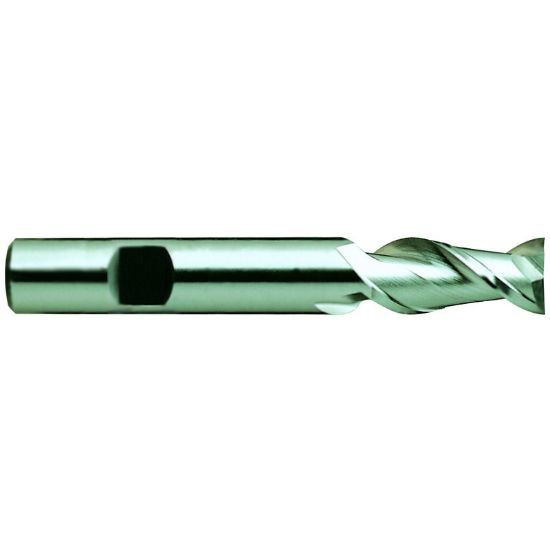

YG-1 17141HN DIA 7/8 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17141HN
Delivery date: 3-5 days
$60.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Dimensional Specifications
Cutter Dia 0.8750 22.23MM - 7/8
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Overall Len 4.1250 104.78MM
Cutter Style HSS Finisher
Machine Side Connection Type Weldon
Helix Angle 42°
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Tool Material High Speed Steel
Flutes/Inserts 2
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
