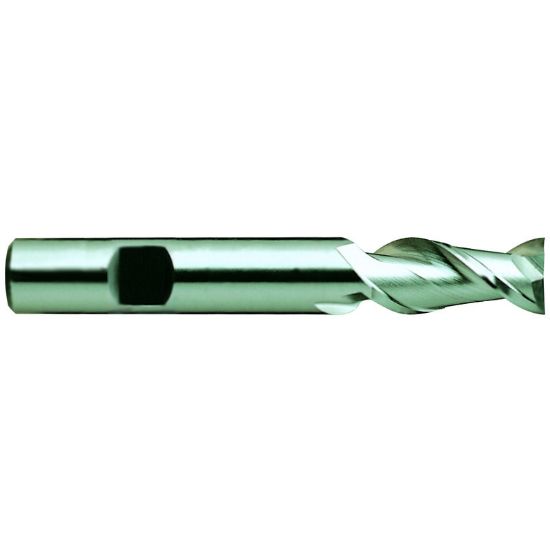

YG-1 17109HN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17109HN
Delivery date: 3-5 days
$50.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Coating TiN
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 42°
Cutter Dia 0.7500 19.05MM - 3/4
Cutter Style HSS Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Tool Material High Speed Steel
Overall Len 3.8750 98.43MM
Length Type Standard
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
