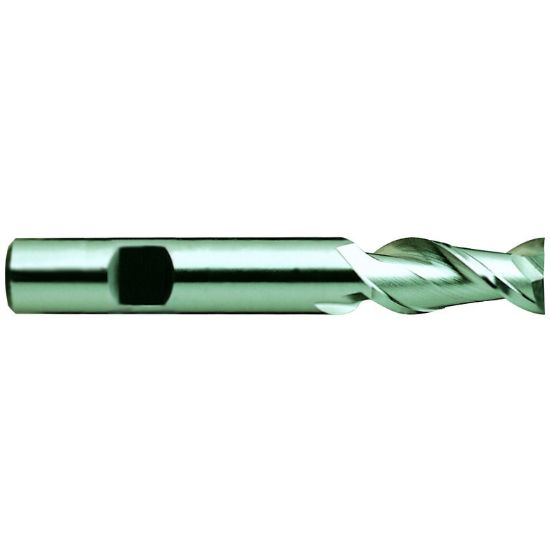

YG-1 17071HN DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-17071HN
Delivery date: 3-5 days
$28.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Coating TiN
Package Size 1
Dimensional Specifications
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 42°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Length Of Cut 1.2500 31.75MM
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Cutter Style HSS Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
