  • YG-1 16298 DIA 36MM SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

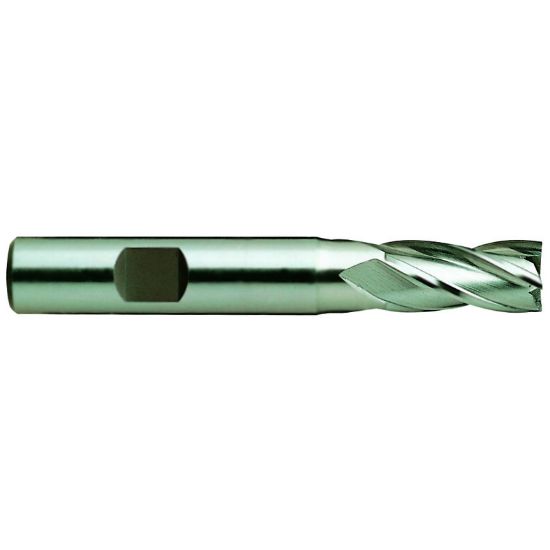

Picture of YG-1 16298 DIA 36MM SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 16298 DIA 36MM SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16298
Delivery date: 3-5 days
$131.08

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Slot Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cutter Dia 1.4173 36.00MM
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Cutter Style Cobalt Finisher
Helix Angle 30°
Flutes/Inserts 4
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
