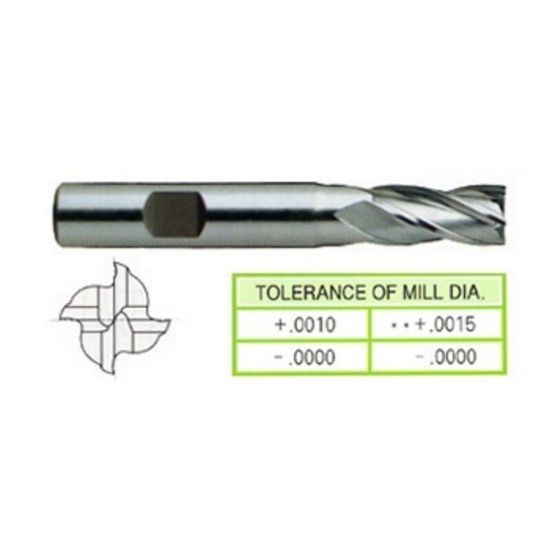

YG-1 16040 DIA 25MM SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16040
Delivery date: 3-5 days
$46.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating General Performance
Application Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.9844 25.00MM - 63/64
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Length Type Standard
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
