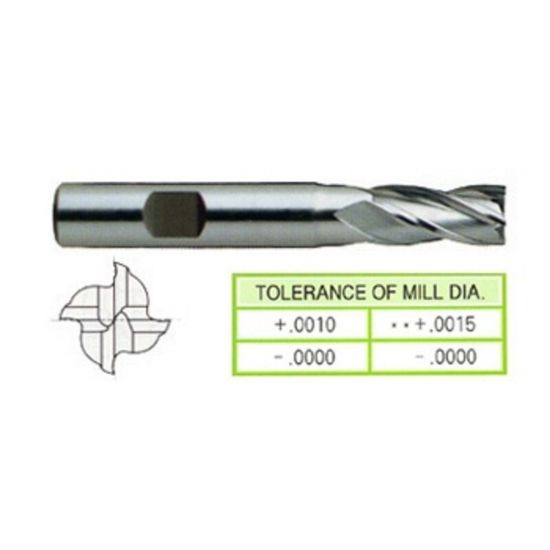

YG-1 16030HN DIA 18MM SH 0.6250 LOC 1.6250 OAL 3.7500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-16030HN
Delivery date: 3-5 days
$42.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Application Side Milling, Face Milling
Made In USA No
Coating TiN
Package Size 1
Dimensional Specifications
Cutter Dia 0.7087 18.00MM
End Of Tool Shape Square
Helix Angle 30°
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Cutter Style HSS Finisher
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
